When the New Page button is pressed in Portal Pages, the screen to configure that type of Portal Page comes up. For reference, here is a screenshot of what the Display Form Page looks like in the Portal:

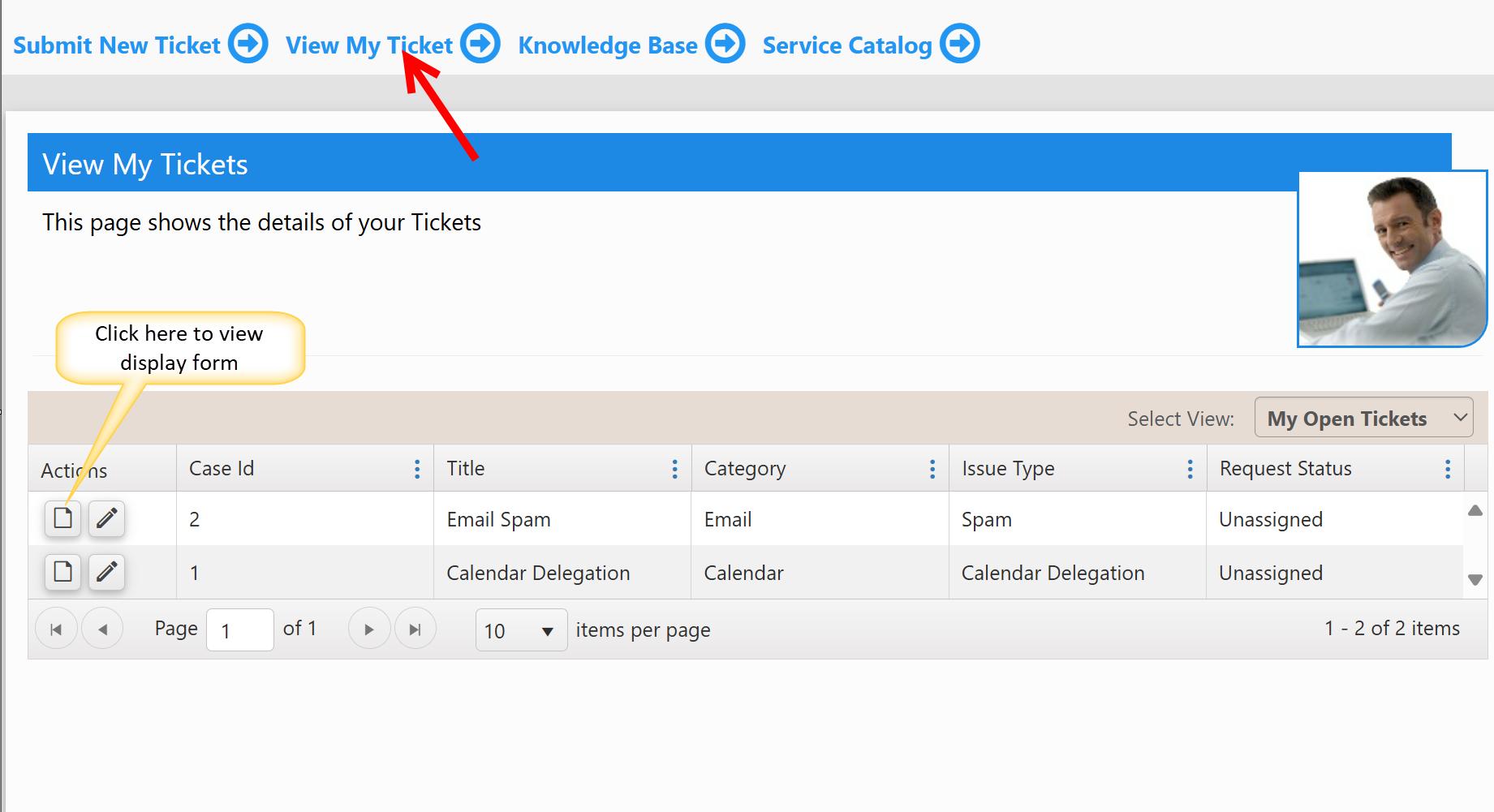

Example of Display Form Page in the Portal
CONFIGURATION IN PORTAL PAGE SETTINGS
Top Section
Each Portal Page is given a Page Name. "Web" refers to the SharePoint Site. "List" refers to which list this page will work with.
Display Page UI Settings
A page can have an icon or image. This needs to be a JPEG file 135px X 125px. It can be selected by using the Choose File and Upload Image buttons. Click "Hide" checkbox to not show an image or icon. A Page Title is required. A Page Description can also be added (which can be set to Hide so it does not show to the Portal end users).
Tab / Section Settings
This section sets the Tabs/Sections and other settings for the form. See Tabs & Sections for details.
Advanced Column Settings
Column Permission and Associated Items are configured here. See Advanced Column Settings for details.
Page Actions
This determines what page is displayed when the form is edited or closed.
